Home > Products > Standard magnetic fluid

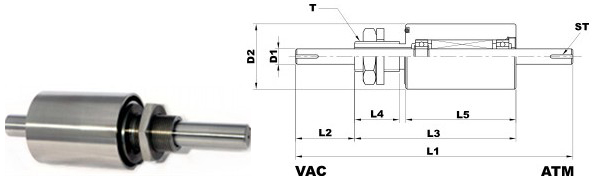

Threaded magnetic fluid













Vacuum feedthrough equipment has been widely used in silicon growing, EPI, sputtering, plasma etching, CVD and liquid crystal regrowing, etc.  Nowadays, As the most advanced vacuum feedthrough supplier, UNICARER can provide you with a full set of solutions on vacuum seals technology.

Model in inches (metric size)
M P D1 D2 L1 L2 L3 L5 T ST TC BT FS
4 11040 ∅4 ∅21 76.5 15 46.5 36.5 M12x1.5 0.5x10 (flat) 1 686 S14
0
-0.018
    5 11050 ∅5 ∅21 76.5 15 46.5 36.5 M12x1.5 0.5x10 (flat) 1.6 686 S14
0
-0.018
6 11060 ∅6 ∅21 76.5 15 46.5 36.5 M12x1.5 0.5x10 (flat) 1.6 686 S14
0
-0.018
12 11120 ∅12 ∅48 179 40 109 74 M25x1.5 4x2.5x20 (keyway) 23.4 6002 G35
0
-0.027
121 11121 ∅12 ∅48 179 40 109 74 M25x1.5 5x2.5x20 (keyway) 23.4 6002 G35
0
-0.027
20 11200 ∅20 ∅63 211 55 121 82 M30x1.5 6x3.5x25 (keyway) 108.6 6005 G50
0
-0.033
201 11201 ∅20 ∅63 211 55 121 82 M30x1.5 6x3.5x25 (keyway) 108.6 6005 G50
0
-0.033

           Water-cooled, outlet on the transmission into a radial release
  M P D1 D2 L1 L2 L3 L4 L5 T
    3/16 61010 ∅3/16" ∅16 65.08 12.7 40.13 7.1 33.02 5/16-24 UNF-2A
   1/4 61020 ∅1/4" ∅19.05 87.3 19.05 49.2 9.5 39.68 7/16-20 UNF-2A
   1/2 61030 ∅1/2" ∅72.9 223.83 63.25 128.83 33.7 90.48 1"-14 UNS-2A
  1/21 61031 ∅1/2" ∅72.9 223.83 63.25 128.83 33.7 90.48 1"-14 UNS-2A
  3/4 61040 ∅3/4" ∅72.9 223.83 2.49 128.83 33.7 90.48 1"-14 UNS-2A
  3/41 61041 ∅3/4" ∅72.9 223.83 2.49 128.83 33.7 90.48 1"-14 UNS-2A




ADD TO INQUIRY
