| Model in inches | ||||||||||||
| Metric size | ||||||||||||

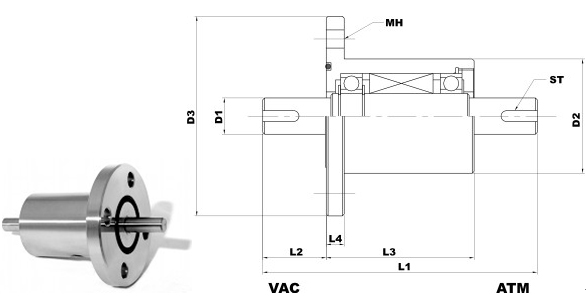

| M | P | D1 | D2 | D3 | L1 | L2 | L3 | L4 | ST | TC | BT | FS |
| 6 | 13060 | ∅6 | ∅38 | ∅80 | 97.5 | 20 | 57.5 | 10 | 0.5x12 (flat) | 2.6 | 627 | G25 |
| 0 | ||||||||||||
| -0.018 | ||||||||||||
| 10 | 13100 | ∅10 | ∅44 | ∅80 | 119.5 | 25 | 69.5 | 10 | 3x1.8x14 (keyway) | 13.7 | 6001 | G30 |
| 0 | ||||||||||||
| -0.022 | ||||||||||||
| 12 | 13120 | ∅12 | ∅48 | ∅90 | 133.5 | 30 | 73.5 | 10 | 4x2.5x20 (keyway) | 23.6 | 6002 | G35 |
| 0 | ||||||||||||
| -0.027 | ||||||||||||
| 20 | 13200 | ∅20 | ∅63 | ∅105 | 151.5 | 35 | 81.5 | 10 | 6x3.5x25 (keyway) | 109.2 | 6005 | G50 |
| 0 | ||||||||||||
| -0.033 | ||||||||||||
| 301 | 13301 | ∅30 | ∅105 | ∅160 | 321 | 90 | 141 | 20 | 10x5x80 (keyway) | 366 | 6207 | |
| 0 | ||||||||||||
| -0.033 | ||||||||||||
| These drives have different flanges available if appropriate, such as KF, ISO, CF and custom flanges. | ||||||||||||
| M | P | D1 | D2 | D3 | L1 | L2 | L3 | L4 | ST | TC | ||
| 1/4 | 63010 | ∅1/4" | ∅38.1 | ∅69.3 | 103.1 | 19.05 | 67.3 | 12.7 | 0.76x10.16 (flat) | 1.76 | ||
| 1/4 | 63020 | ∅1/4" | ∅19.05 | ∅33.8 | 82.6 | 19.05 | 44.5 | 7.2 | 0.76x10.16 (flat) | 1.76 | ||
| 3/812 | 6303126 | ∅3/8" | ∅38.1 | ∅69.3 | 115.8 | 19.05 | 77.7 | 12.7 | 0.76x10.16 (flat) | 7.8 | ||
| 3/82 | 63042 | ∅3/8" | ∅38.1 | ∅69.3 | 114.3 | 19.05 | 76.2 | 12.7 | 0.76x10.16 (flat) | 7.8 | ||
| 1/2 | 63050 | ∅1/2" | ∅72.9 | ∅152.4 | 153.2 | 31.75 | 90.4 | 9.7 | 3.2x19.558x25.4 (keyway) | 20.2 | ||
| 1/2 | 63060 | ∅1/2" | ∅60.3 | ∅69.3 | 219.9 | 63.5 | 124.6 | 12.7 | 3.2x19.558x25.4 (keyway) | 20.2 | ||
| 3/4 | 63070 | ∅3/4" | ∅72.9 | ∅152.4 | 153.2 | 30.94 | 90.5 | 9.7 | 4.78x2.9x25.4 (keyway) | 76 | ||
| 3/412 | 6308126 | ∅3/4" | ∅76.2 | ∅127 | 238.7 | 67.8 | 124 | 14.2 | 4.78x2.9x25.4 (keyway) | 284 | ||
