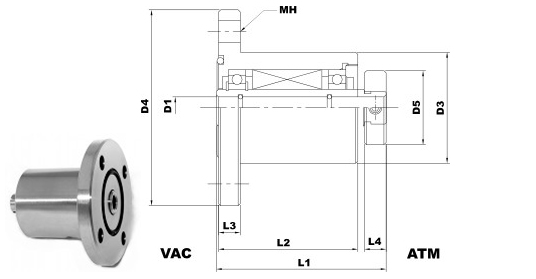

Hollow shaft flanged magnetic fluid















Magnetic Fluid Vacuum Drives are the ideal way to introduce rotary motion in an external environment    to a vacuum or overpressure environment. Transmission components are sealed by a fluid seal in a permanent

magnetic field, thus reducing friction and thus minimizing contamination, featuring high vacuum, high reliability, long service life, high torque transmission, high speed rotation, low damping and more , At low speed and boot can rotate smoothly.

Model in inches
Metric size
M P D1 D3 D4 D5 L4 L1 MH L2 L3 R
10 14100 ∅10 ∅51 ∅90 ∅34 10 78 ∅10 (4x on ∅70 bc) 64 10 ∅10
0.03 -0.01
0.01 -0.03
101 14101 ∅10 ∅51 ∅90 ∅34 10 78 ∅10 (4x on ∅70 bc) 64 10 ∅10
0.03 -0.01
0.01 -0.03
20 14200 ∅20 ∅63 ∅105 ∅44 10 82.5 ∅10 (4x on ∅85 bc) 68.5 10 ∅20
0.04 -0.01
0.02 -0.03
201 14201 ∅20 ∅63 ∅105 ∅44 10 82,5 ∅10 (4x on ∅85 bc) 68.5 10 ∅20
0.04 -0.01
0.02 -0.03
25 14250 ∅25 ∅71 ∅120 ∅49 10 88 ∅10 (4x on ∅100 bc) 74 10 ∅25
0.04 -0.01
0.02 -0.03
251 14251 ∅25 ∅71 ∅120 ∅49 10 88 ∅10 (4x on ∅100 bc) 74 10 ∅25
0.04 -0.01
0.02 -0.03
30 14300 ∅30 ∅78 ∅120 ∅54 10 93 ∅10 (4x on ∅100 bc) 79 10 ∅30
0.04 -0.01
0.02 -0.03
301 14301 ∅30 ∅78 ∅120 ∅54 10 93 ∅10 (4x on ∅100 bc) 79 10 ∅30
0.04 -0.01
0.02 -0.03
40 14400 ∅40 ∅90 ∅145 ∅69 12 96 ∅12 (4x on ∅120 bc) 80 10 ∅40
0.05 -0.01
0.02 -0.03
401 14401 ∅40 ∅90 ∅145 ∅69 12 96 ∅12 (4x on ∅120 bc) 80 10 ∅40
0.05 -0.01
0.02 -0.03
50 14500 ∅50 ∅103 ∅160 ∅79 12 98 ∅12 (4x on ∅135 bc) 82 12 ∅50
0.05 -0.01
0.02 -0.03
501 14501 ∅50 ∅103 ∅160 ∅79 12 98 ∅12 (4x on ∅135 bc) 82 12 ∅50
0.05 -0.01
0.02 -0.03
75 14750 ∅75 ∅143 ∅210 ∅109 15 115 ∅12 (8x on ∅185 bc) 96 12 ∅75
0.06 -0.01
0.03 -0.04
751 14751 ∅75 ∅143 ∅210 ∅109 15 115 ∅12 (8x on ∅185 bc) 96 12 ∅75
0.06 -0.01
0.03 -0.04

M P D1 D3 D4 D5 L4 L1 MH L2 L3
 1/2 64010 ∅12.75 ∅69.85 ∅142.4 ∅31.75 9.652 81.66 ∅19(4x on ∅120.65 bc) 69.85 9.65 ∅12.7
0
-0.002
1/21  64011 ∅12.75 ∅69.85 ∅142.4 ∅31.75 9.652 81.66 ∅19(4x on ∅120.65 bc) 69.85 9.65 ∅12.7
0
-0.002
1 64020 ∅25.45 ∅76.2 ∅177.8 ∅50.8 12.7 84.84 ∅19(4x on ∅139.7 bc) 69.85 9.65 ∅25.4
0
-0.002
11 64021 ∅25.45 ∅76.2 ∅177.8 ∅50.8 12.7 84.84 ∅19(4x on ∅139.7 bc) 69.85 9.65 ∅25.4
0
-0.002
1  1/21 64031 ∅38.15 ∅95.25 ∅177.8 ∅76.2 15.75 94.34 ∅19(4x on ∅139.7 bc) 76.2 9.65 ∅38.1
0
-0.002
1 1/21 2 6404126 ∅38.125 ∅123.95 ∅203.2 n/a n/a 175.26 ∅19(4x on ∅177.8 bc) 127 12.7 ∅38.1
0
-0.002
2 64050 ∅50.85 ∅106.17 ∅177.8 ∅88.9 15.75 100.74 ∅19(4x on ∅139.7 bc) 82.55 9.65 ∅50.8
0
-0.002
21 64051 ∅50.85 ∅106.17 ∅177.8 ∅88.9 15.75 100.74 ∅19(4x on ∅139.7 bc) 82.55 9.65
